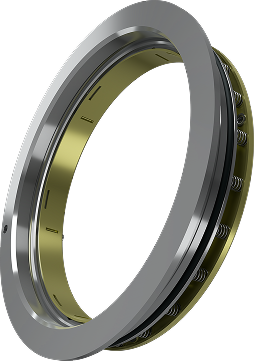

PLAIN ENCASED SEAL
Product
PLAIN ENCASED SEAL
PLAIN ENCASED SEAL

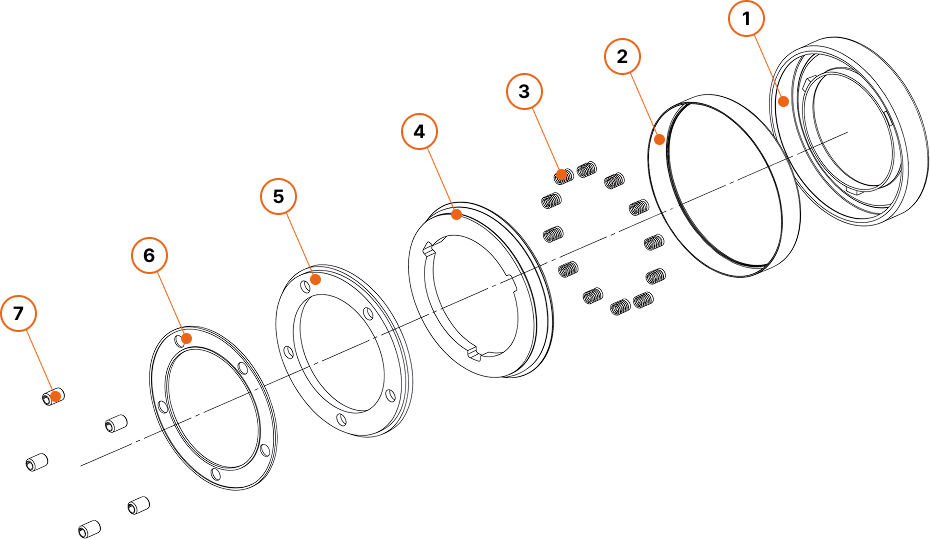

Drawing

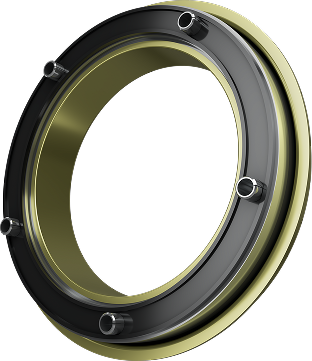

3D View
No.
Part Name
Part No.
Q‘ty
1
Case,Stopper Welding
MT25-10917227-13
1
2
Inner Ring
MT25-10917227-2
1
3
Spring
MT25-10917227-4
12
4
Seal, Lower Ass'y
MT25-10917227-5
1
5
Seal, Upper
MT25-10917227-6
1
6
Gasket
MT25-10917227-7
1
7
Spring Pin
MT25-10917227-8
5
8
Grease
Mil-G-10924
AR

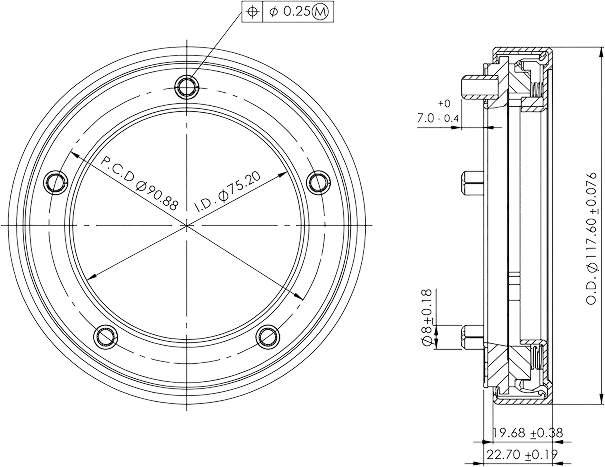

Drawing

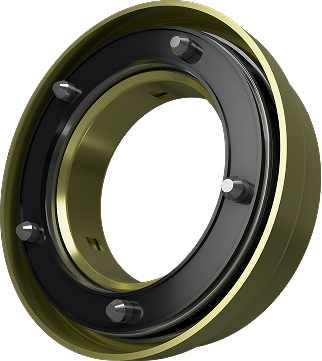

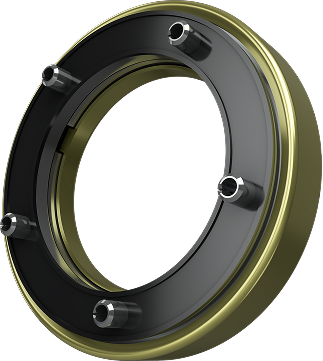

3D View
No.
Part Name
Part No.
Q‘ty
Material
1
Case , 2531
60627026 - 1
1
Cold Rolled C Steel
2
Inner Case Ring
60627026 - 2
1
-
3
Diaphragm
60627026 - 3
1
ASTM D2000, Nitrille
4
Spring
60627026 - 6
9
-
5
Seal Face, Lower
60627026 - 4
1
FC15Cr3Mo
6
Seal Face, Upper
60627026 - 5
1
FC15Cr3Mo
7
Gasket , 2531
60627026 - 8
1
Rubber NBR
8
Grease
AR
MiL-G-10924

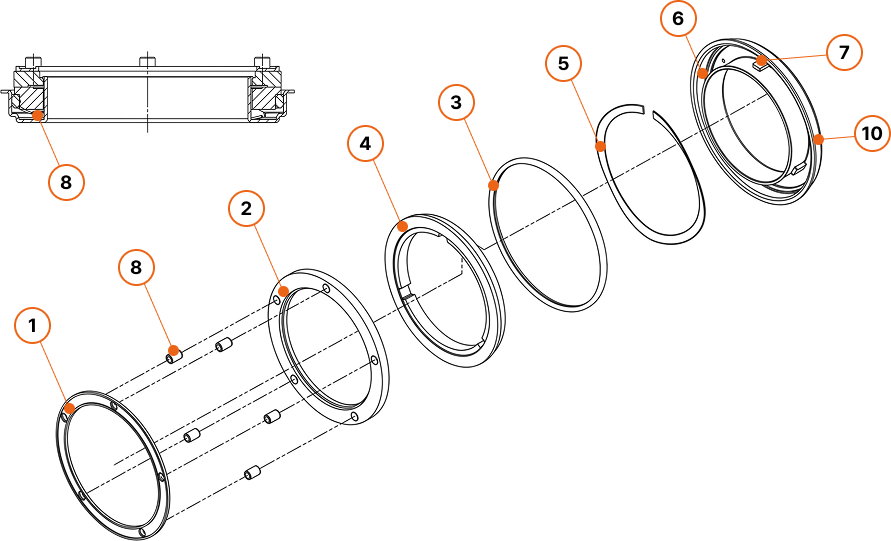

Drawing
3D View
No.
Part Name
Part No.
Q‘ty
Material

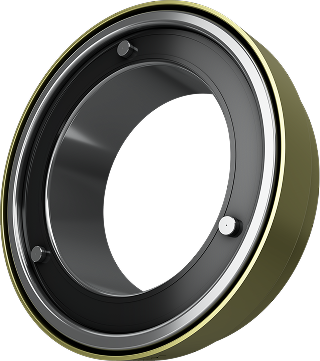

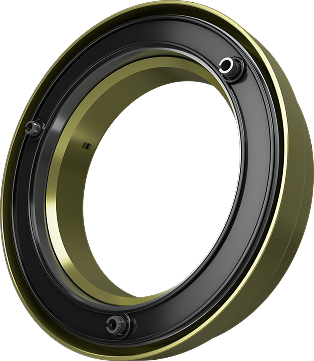

1
Case , 9626
60621018 - C1
1
Cold Rolled C Steel
2
Inner Case Ring
60621018 - C2
1
-
3
Diaphragm
60621018 - C4
1
ASTM D2000, Nitrille
4
Spring
60621018 - C6
12
-
5
Seal Face, Lower
60621018 - C5
1
FC15Cr3Mo
6
Seal Face, Upper
60621018 - C7
1
FC15Cr3Mo
7
Spring Pin
60621018 - C8
3
-
8
Gasket
60621018 - C3
1
Rubber NBR
9
Grease
AR
MiL-G-10924
Drawing
3D View
No.
Part Name
Part No.
Q‘ty

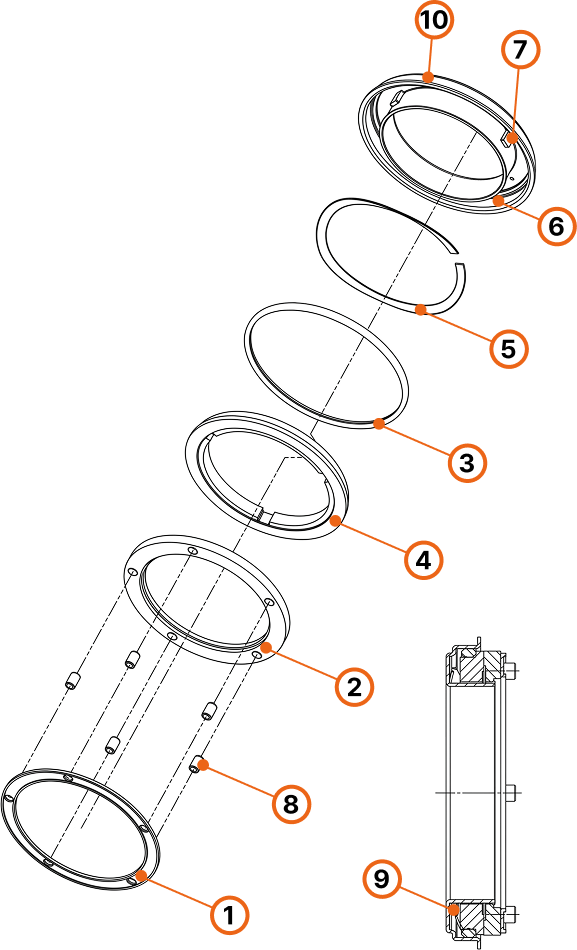

1
Gasket
MT25-10917126-1
1
2
Face Seal, Upper
MT25-10917126-2
1
3
O-Ring
MT25-10917126-3
1
4
Face Seal, Lower
MT25-10917126-4
1
5
Wave Spring
MT25-10917126-5
1
6
5607 Case
MT25-10917126-6
1
7
Stopper
MT25-10917126-7
3
8
Spring Pin
MT25-10917126-8
5
9
Grease
MIL-G-10924
AR
10
Sealer Coating
Green Color
AR
Drawing
3D View
No.
Part Name
Part No.
Q‘ty
1
Case
MT25-7962191-01
1
2
Outer Ring
MT25-7962191-02
1
3
Inner ring
MT25-7962191-03
1
4
Gasket
MT25-7962191-04
1
5
Bottom Gasket
MT25-7962191-05
1
6
Spring
MT25-7962191-06
9
7
Seal, Lower
MT25-7962191-07
1
8
Seal, Upper
MT25-7962191-08
1
9
Diaphragm
MT25-7962191-09
1
10
Pin
MT25-7962191-10
3
Drawing
3D View
No.
Part Name
Part No.
Q‘ty
1
Upper Seal
MT26-8355838-C1
1
2
Spring SEAT comp.
MT26-8355838-B1
1
3
Lower Seal
MT26-8355838-C3
1
4
Spring
MT26-8355838-C6
24
5
O-Ring, AN 261
MT26-8355838-C8
1
